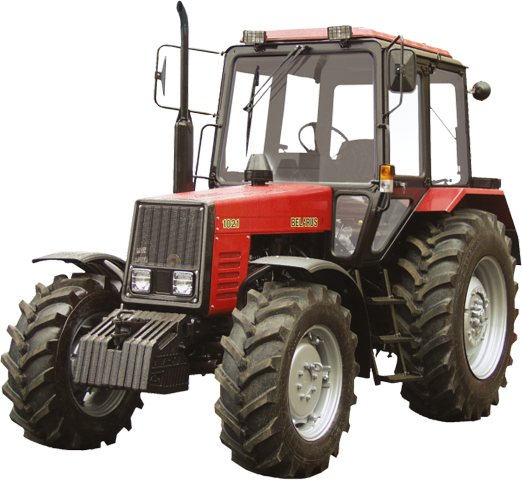

Belarus 1021

.

.

.

The Belarus 2021 tractor is designed for various agricultural operations with mounted, semi-mounted and trailed machines and implements, for transport operations.

Includes front driving axle with planetary spur wheel reduction gears, rear axle with planetary final drives, hydraulic hitch system with hydraulic lift.

Additional options:

  • Reducing gear;
  • Balance weights of back wheels;
  • Front balance weights;
  • Double-wire bailer brakes pneumatic drive.

.

Capacity 104,7(107,4)/77,0(79,0) h.p/kW
Axle arrangement 4К4
Selective gear synchronized
Number of gears FWD/BWD 14/4 (20/6)



.

Technical characteristics

.

Engine
Type diesel with turbocharging and direct injection
Capacity, h.p/kW 104,7(107,4)/77,0(79,0)
Brand mark D-245/D-245C
Ecological standard Stage 0/Stage I
Fuel use, g/(kW·h) 236,00+3/244,00+5
Torque capacity, Н·m2 385,5/385
Transmission system
Selective gear mechanical, synchronized
Flywheel clutch single-disk, dry
Number of gears FWD/BWD 14/4 (20/6)
Back PTO shaft, min-1 540/1000
Hydraulics
Load-carrying capacity of back suspension gear on suspension axis, kg, minimum 4200
Full scale pressure, MPa 20-2
Pump displacement at nominal speed of diesel crankshaft, l/min, minimum 56
Hydraulics reservoir capacity, l 28,5 ± 0,5
Undercarriage
Type wheeled
Axle arrangement 4К4
Tyres
front 360/70R24; 11,2R24
back 15,5R38; 16,9R30; 18.4R34 11,2R42
Other specifications
Maximum weight, kg 7500
Climatic modification У1,Т1
Minimum and maximum speed FWD/BWD, km/h Min 2,60/5,50; Max 36,6/17,2
Reverse gear mechanical
