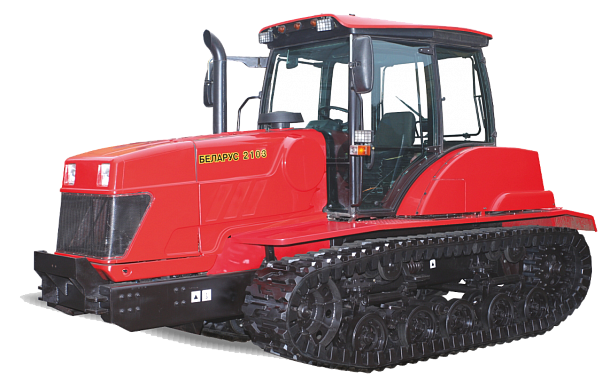

The Belarus 2103 is an agricultural track-type tractor intended for work in agriculture with hinged, semi-hinged, hook-on cars, including for works of general purpose on the re-humidified soils.
Additional options include metal track-type with rubber-metal hinges and heater.
- Capacity 156 kW (212 h.p.)
- Selective gear hydromechanical
- Number of gears FWD/BWD 16/8
Specifications
Nominal traction force, kN | 40 |
Overall dimensions (length/width/height), mm | 6250/2100/2950 |
Travel speed (forward/reverse), km/h | 3,08–26,12/4,21–14,47 |
Ground clearance, mm | 360 |
Engine | |
---|---|
Type | 4-stroke, diesel, six-cylinder, line, liquid cooling with a turbo-supercharging and intermediate aftercooling |
Capacity, kW (h.p.) | 156 (212) |
Brand mark | ММЗ D-260.4S2 |
Ecological standard | Tier II |
Fuel rate at rated power, g/kW·h | 227 |
Transmission system | |
Flywheel clutch | dry, two-disk |
Selective gear | mechanical, step, with gear shifting under loading |
Number of gears FWD/BWD | 16/8 |
Back PTO shaft | independent II, rpm |
Hydraulics | |
Type | separate and modular with the opened circulation and a full-line filtration of working liquid |
Quantity of conclusions of a hydraulic system | four couples |
Pressure of setup of the safety valve of a hydraulic system, MPa | 20,0 |
Hydraulics reservoir capacity, l | 70 |
Other specifications | |
Type of the back hinged device | NY-3 GOST 10677 |
Loading capacity on an axis of hinges of the lower drafts, kg | 8000 |
The tractor is completed by request with a heater, the conditioner, a rezinoar-mirovanny track-type or a metal track-type with rubber-metal hinges (RMSh):
complete set | Metal track-type with RMSh | Rezinoarmirovanny track-type | heater | conditioner |
---|---|---|---|---|
2103 | x | x | ||
2103-02 | x | x | ||
2103-03 | x | |||
2103-04 | x | x | ||
2103-05 | x | x | x | |
2103-06 | x | |||
2103-07 | x | x | ||
2103-08 | x | x | x |
