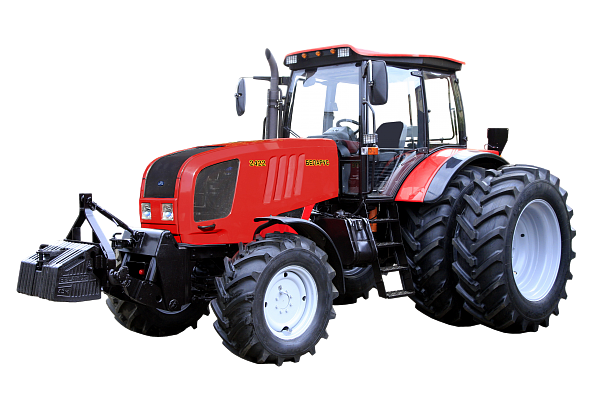

Belarus 2122.4

.

.

.

The Belarus 2122.4 tractor is designed for various power-intensive agricultural operations in towing and towing driven modes in combination with wide-cut and combined machinery including at echelon hinge.

Category 4 new tractor, front hitch and front PTO in standard components, increased capacity fuel tank, hydrosystem with variable-flow pump, four-sectional distributor with EHS system, hydromechanical gearbox, new side console.

.





Capacity 202 h.p./148,6 kW
Axle arrangement 4К4
Number of gears FWD/BWD 16/8
Selective gear hydromechanical



.

Technical characteristics

.

Engine
Type four-stroke diesel with turbocharging and aftercooling
Capacity, h.p/kW 202/148,6
Brand mark D-260.4S3A
Ecological standard Stage III3A
Fuel use, g/(kW·h) 249,0+12,5(-7,5)
Torque capacity, Н·m2 923
Transmission system
Number of gears FWD/BWD 16/8
Back PTO shaft, min-1 540/1000
Hydraulics
Load-carrying capacity of back suspension gear on suspension axis, kg, minimum 6500
Full scale pressure, MPa 20-2
Pump displacement at nominal speed of diesel crankshaft, l/min, minimum 86
Hydraulics reservoir capacity, l 80,0 ± 0,5
Undercarriage
Type wheeled
Axle arrangement 4К4
Tyres
front 480/65R24;
back 580/70R42
Other specifications
Maximum weight, kg 13000
Climatic modification У1
Minimum and maximum speed FWD/BWD, km/h Min 2,83/3,97; Max 39,57/18,63
