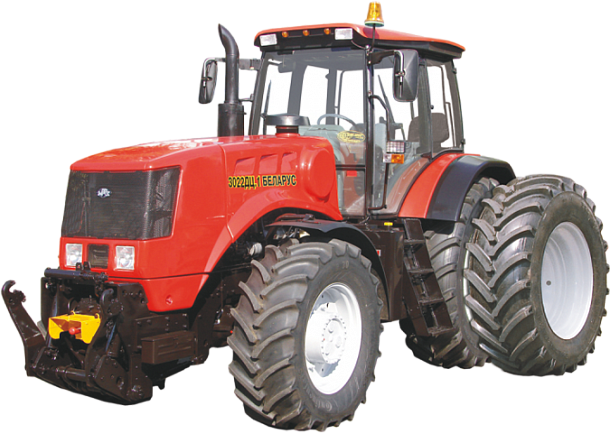

The Belarus 3022DC.1 tractor is designed for various agricultural operations of general purposes: general tillage and pre-sowing soil treatment, sowing in combination with wide-cut and combined machinery, harvesting consisting of high efficient harvest complexes, transport operations.
Diesel engine complies with Stage II according to emissions of hazardous substances. Hydraulic hitch system with EHS and EHR-5 electrically controlled distributor for front hitch control, front PTO shaft, set for rear wheels doubling, air conditioner in standard components.
Specifications
Capacity | 303,3 h.p./223,0 kW |
Axle arrangement | 4К4 |
Number of gears FWD/BWD | 36/24 |
Selective gear | hydromechanical |
Engine | |
---|---|
Type | diesel with turbocharging and aftercooling |
Capacity, h.p/kW | 303,3/223,0 |
Brand mark | BF06M1013FC |
Ecological standard | Stage II |
Fuel use, g/(kW·h) | 248,0+12,5 |
Torque capacity, Н·m2 | 1300 |
Transmission system | |
Number of gears FWD/BWD | 36/24 |
Back PTO shaft, min-1 | 1000 |
Hydraulics | |
Load-carrying capacity of back suspension gear on suspension axis, kg, minimum | 10000 |
Full scale pressure, MPa | 20,5 ± 0,5 |
Pump displacement at nominal speed of diesel crankshaft, l/min, minimum | 120 |
Hydraulics reservoir capacity, l | 110,0 ± 0,5 |
Undercarriage | |
Type | wheeled |
Axle arrangement | 4К4 |
Tyres | |
front | 540/65R30; |
back | 580/70R42; 620/70R42; 650/65R42 |
Other specifications | |
Maximum weight, kg | 14000 |
Climatic modification | У1 |
Minimum and maximum speed FWD/BWD, km/h | Min 0,38/0,41; Max 40,94/20,07 |
