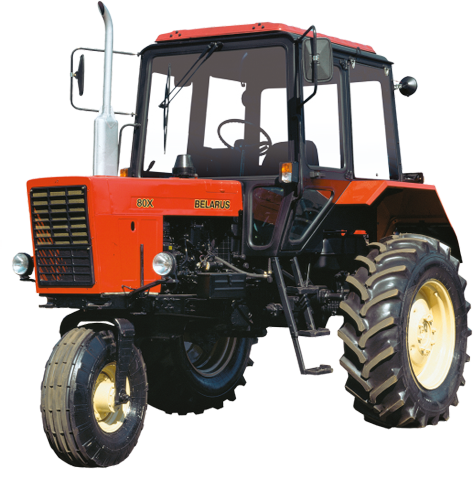

Belarus 80X

.

.

.



The Belarus 80X tractor is designed for agricultural operations with mounted, semi-mounted and trailed machines and implements, for integrated mechanization of cotton cultivation and raw cotton harvesting and also agricultural operations in cotton-growing areas.

Capacity 81(81,6) h.p./ 59,6(60) кВт
Axle arrangement 3К2
Selective gear mechanical, with the lowering reducer doubling number of transfers
Number of gears FWD/BWD 16/4



.

Technical characteristics

.

Engine
Type the 4th cylinder, without turbo-supercharging
Capacity, h.p./kW 81(81,6)/59,6(60)
Brand mark D-243/D-243C
Ecological standard Stage 0/Stage I
Fuel use, g/(kW·h) 229/244
Torque capacity, Н·m2 298
Transmission system
Selective gear mechanical, with the lowering reducer doubling number of transfers
Flywheel clutch frictional one-disk constant the closed type with a mechanical control
Number of gears FWD/BWD 16/4
Back PTO shaft, min-1 540/1000
Hydraulics
Load-carrying capacity of back suspension gear on suspension axis, kg, minimum 2800
Full scale pressure, MPa 20-2
Pump displacement at nominal speed of diesel crankshaft, l/min, minimum 55
Hydraulics reservoir capacity, l 25,5 ± 0,5
Undercarriage
Type wheeled
Axle arrangement 3К2
Tyres
front 7.50-20; 9.00-20;9.00R20
back 11.2R42;18.4L30;18.4R30; 15.5R38
Other specifications
Brakes/trailer brakes dry disk with the mechanical drive / pneumatic, single-wire, blocked with management of tractor brakes
Maximum weight, kg 6500
Climatic modification У1/Т1
Minimum and maximum speed FWD/BWD, km/h Min 1,94/4,09
Max 18,4/9.22
