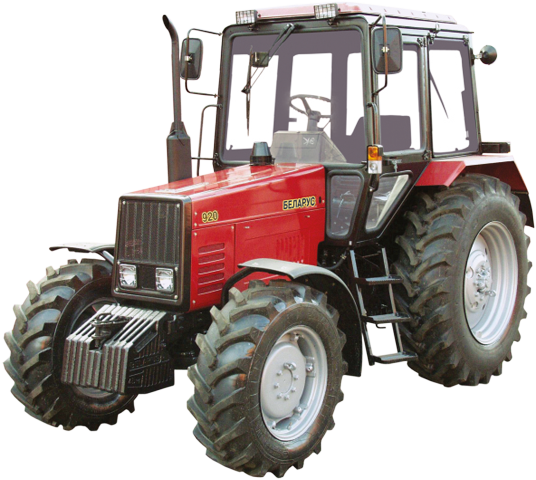

The Belarus 920 tractor is designed for various agricultural operations with mounted, semi-mounted and trailed machines and implements, for transport operations. Has a front driving axle with bevel reduction gears.
Additional options:
- Creeper;
- Balance weights of back wheels;
- Front balance weights;
- Brakes operating in oil reservoir;
- Cab canopy;
- Spacers for dual wheels.
| Capacity, h.p./kW | 81/59,6 |
| Axle arrangement | 4К4 |
| Number of gears FWD/BWD | 14/4 |
.
Technical characteristics
.
| Engine | |
|---|---|
| Type | diesel without turbocharging, with direct injection |
| Capacity, h.p./kW | 81/59,6 |
| Brand mark | D-243 |
| Ecological standard | Stage 0/Stage I |
| Fuel use, g/(kW·h) | 229+3 |
| Torque capacity, Н·m2 | 298 |
| Transmission system | |
| Selective gear | mechanical, synchronized |
| Flywheel clutch | dry, single-disk |
| Number of gears FWD/BWD | 14/4 |
| Back PTO shaft, min-1 | 540/1000 |
| Hydraulics | |
| Load-carrying capacity of back suspension gear on suspension axis, kg, minimum | 3200 |
| Full scale pressure, MPa | 20-2 |
| Pump displacement at nominal speed of diesel crankshaft, l/min, minimum | 45 |
| Hydraulics reservoir capacity, l | 28,5 ± 0,5 |
| Undercarriage | |
| Type | wheeled |
| Axle arrangement | 4К4 |
| Tyres | |
| front | 11,2-20; 13,6-20; 360/70R20;13,6R20; |
| back | 15,5R38; 16,9R38; 18.4R34; 9,5-42; 11,2R42 |
| Other specifications | |
| Maximum weight, kg | 7000 |
| Climatic modification | У1/Т1 |
| Minimum and maximum speed FWD/BWD, km/h | Min 2,55/5,36; Max 36,6/12,07 |
| Reverse gear | mechanical |
