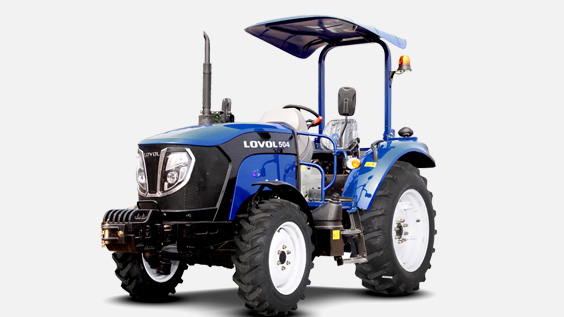

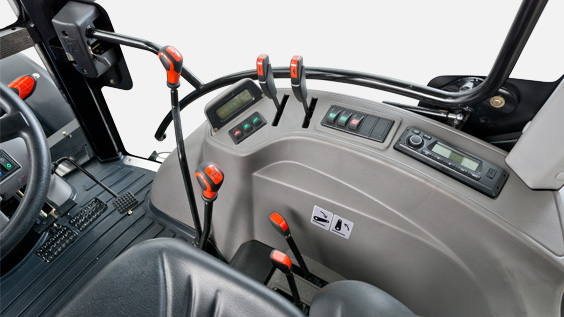

Lovol TB504N

.

.

.

.

.

.

.

.

...



Technical parameters

.

Drive type 4*4
Overall dimension(L * W * H) 4000*1400*(1560/2500)
Wheelbase (mm) 1990
Track(front/rear) 1080/960
Track(front/rear) regulating method Step/Step
Min.Ground clearance(mm) 310
Min.operating weight (with cab)(kg) 2380
Min.operating weight (without cab)(kg) 2240
Counterweight (max)(front/rear) 120/108
Gears(forward/reverse/creeper) 8+8/16+8
Theoretical speed of each gear(forward/reverse) 2.24-29.91/1.97-26.22;0.37-29.91/0.55-10.25

Engine

Brand Xinchai
Engine type 4-cylinder
Intake mode Natural intake
Number of cylinders 4
Bore 98
Stroke 105
Displacement(L) 3.168
Engine rated power kW@rpm 36.8
Rated speed 2400
Type of air cleaner Dry or wet type
Type of cooling system Forced water-cooled
Max. Torque@ revolving speed (rpm) 192/1600~1800
Specific fuel consumption rate at rated conditions (g/kW.h) ≤248
Fuel tank capacity (L) 42

Steering brake system

Type of steering system Hydraulic/mechanical
Type of steering gear Cycloid orbitrol steering gear
Type of braking system Disc type

Transmission system

Clutch type Single-action/double action
Gearbox type Two-axis mechanical gearbox
Gearbox shift mode Shift sleeve
Type of central transmission Spiral bevel gear type
Final transmission mode (front/rear) Planetary gear type

Walking system

Frame type Frameless
Tire Model (front/rear) 8.3-20/12.4-28

Working device

Type of hydraulic suspension system Open-center, semi-separated type

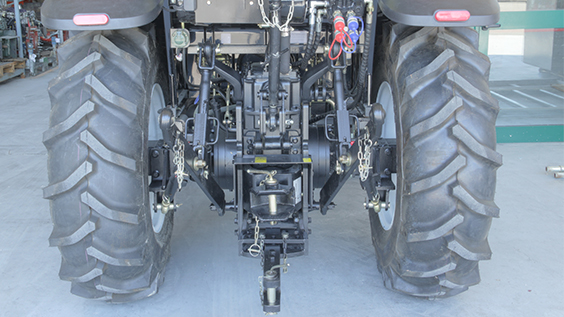

Type of linkage Three point rear linkage
Linkage classes Class II
Lift capacity(610mm point))kN 9.1
Regulating mode Force or position independent control
Type of PTO shaft Rear semi-detached type
The number of PTO shaft splines 6 splines/8splines
Outer diameter of PTO shaft spline φ35/φ38
PTO shaft speed 540/760 or 540/1000 or 760/1000

Hydraulic system

Hydraulic output flow (L/min) 23/45
