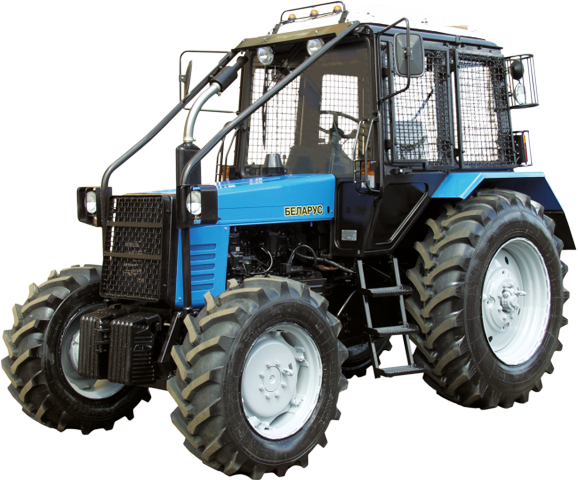

Belarus L82.2

The Belarus L82.2 forestry tractor is designed for reforestation and forest treatment operations, and also for transport operations in thinning areas.

Building-block approach with forestry implements. It has protective guards of cab, hood, headlights and tractor bottom. Safe cab (ROPS, FOPS, OPS).

The tractor is delivered in the following complete sets:

  • L82.2 — with a pneumatic actuator of brakes, forward ballast freights, the forward towing device;
  • L82.2-01 — without pneumatic actuator of brakes, forward ballast freights, the forward towing device;
  • L82.2-02 — with a pneumatic actuator of brakes, forward ballast freights, the forward towing device, the TSU-2 traction coupling device.

Specifications

Capacity 59,6 kW (81 h.p.)
Selective gear Mechanical
Number of gears FWD/BWD 16/4
Rated draft force, kN 14
Travel speed, km/h (operating/allowable travelling) 25/15



Type Biaxial, pneumo-wheeled, with 4×4 wheel arrangement, steering front wheels, front arrangement of loading equipment and rear arrangement of excavating equipment.
Traction class 1,4
Rated draft force, kN 14
Travel speed, km/h (operating/allowable travelling) 25/15
Engine ММЗ D-243 (D-243С), 4-stroke, diesel, four-cylinder
Capacity, kW (h.p.) 59,6 (81)
Fuel rate at rated power, g/kW·h 235
Flywheel clutch dry, single-disk
Selective gear Mechanical, step-by-step, range
Number of gears FWD/BWD 16/4
Axle arrangement 4К4
Hydraulics reservoir capacity, l 21
Quantity of hydroconclusions four couples
Lifting capacity at lower link ends, kg 3500

.

In addition:

.

Description L82.2 L82.2-01 L82.2-02
Operated weight, kg 4850 4550 4850
Overall dimensions, mm:
Length 4130 4000 4130
Width 2320 2320 2320
Height 2950 2950 2950
