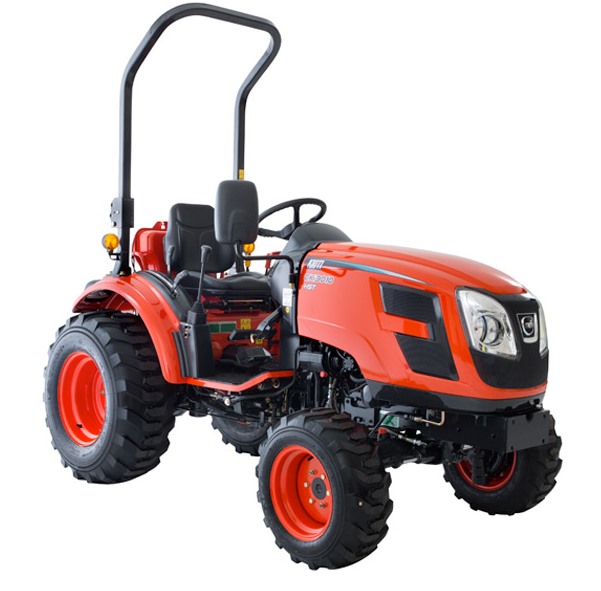

Kioti Daedong CK3010



.

.

.

.

.

The CK3010 has been equipped with a performance proven, heavy duty HST drive unit to handle the increased horsepower of this stylish new compact Kioti tractor. Single pedal controls make changing between forward and reverse easy without clutching or hand shifting and the operators hands remain free for steering and implement control.

brochure

.

.

.

.

.

.

Standard Features:

  • Double acting hydraulic valve
  • Joystick lever with mid-mount valve for FEL
  • Cruise control (HST Model
  • Power Steering

.

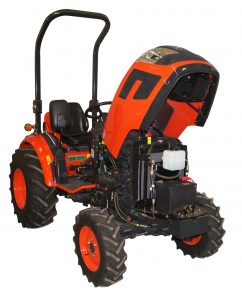

Engine

Kioti-Daedong diesel engines produce low noise, little vibration and meet or exceed EPA regulations. The CK3010 is equipped with a 3-cylinder 28hp water-cooled diesel engine. Traveling speed can be controlled with the hand lever and foot accelerator pedal. The fuel tank capacity is 25 litres.

A heavy duty front axle and standard 4WD guarantee powerful traction. The CK3010 has 2 infinite travelling speeds 17 km/h in forward and 12 km/h when in reverse. It comes with a hydrostatic single dry clutch transmission; standard rear differential lock, wet disc brakes and a standard 540/rpm PTO.

.

.

.

.

.



Transmission

The CK3010 has 2 infinite travelling speeds 17 km/h in forward and 12 km/h when in reverse. It comes with a performance proven heavy duty HST drive unit. A single pedal controls traveling speed and direction with clutching or hand shifting, therefor the hands remain free for implement control.  Rear differential lock, wet disc brakes and 540 rpm PTO are standard. A heavy duty front axle and 4WD guarantee powerful traction.



.

.

.

.

.

Operator Station

All control levers are easy to reach and allow the operator to work in comfort. The instrument panel is easily visible and the operator can monitor all operations at a glance.

.

.

.

.

.

.

.

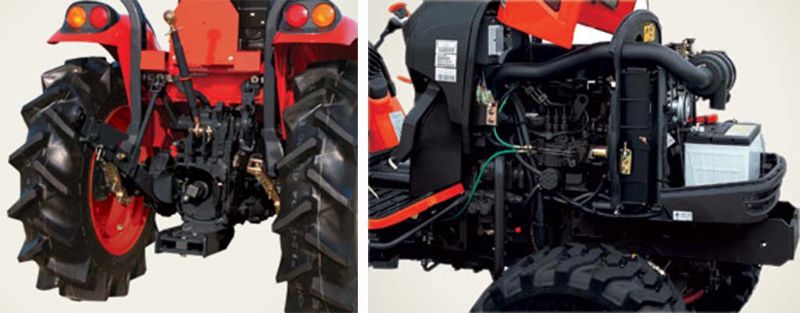

Hydraulics

A standard joystick lever with a mid-mount double acting valve makes operation of the front-end loader easy, as all operations are performed with a single lever. The lever automatically returns to neutral and the loader stops in place when the joystick is released. The CAT1 3-point linkage has maximum lifting capacity of 739 kg. Hydrostatic Power Steering is standard and makes manoeuvring easy for all operators especially when mowing or working with a front-end loader. The CK3010 is equipped with a tandem gear pump which has a pump capacity of 42.9 lpm. The CAT1 3-point linkage has maximum lifting capacity of 739 kg.

.

Specifications

.

ENGINE BRAKES
Daedong 3A139LWB Wet Disk Brakes
Liquid Cooled 3 Cylinder Engine
1,393cc Displacement OPERATOR ENVIRONMENT
30hp @ 2600 rpm Ergonomic Operator Station
25 Litre Fuel Tank Capacity Illuminated Instrument Panel
12volt Power Outlet
TRANSMISSION High Back Seat
Dry Single Plate Clutch Step Through Platform
2 Range Hydrostatic Front Work Lights
Standard Differential Lock Cruise Control
4 Wheel Drive
DIMENSIONS
POWER TAKE OFF Overall Length 2790mm
Independent 540 RPM Rear Overall Height 2108mm
Overall Width 1250mm
HYDRAULICS & LINKAGE Wheelbase 1520mm
Tandem Gear Pump Ground Clearance 330mm
42.9 lpm Max. Flow Pump Capacity Total Weight 1025kgs
Category 1 Three Point Hitch
546kgs Max. Lifting Capacity @ 600mm Behind Lift TYRES
Hydraulic Lift Position Control AG Tyre Front 7-12
Power Steering Rear 11.2-16
