CK4220 Cabin

Kioti Daedong CK4220

Versatile and gutsy, the new generation Kioti compact CK4220 42 hp Daedong diesel engine tractor comes with either manual or hydrostatic transmission.

HST models feature performance proven, heavy duty HST drives that deliver power and efficiency. The three range transmission – high, mid, low – along with a twin pedal operation makes your job easier, smoother and safer. HST models employ a two pedal system for forward and reverse with smooth engagement, acceleration and deceleration. Pedal pressure is minimised, reducing operator fatigue during long hours of use and when doing repetitive tasks.

Manual transmission models feature 12 forward and 12 reverse speeds delivering heavy duty performance.  Second and reverse gears are synchronised for efficient forward and reverse operations requiring frequent shifting. A maximum ground clearance of 340mm makes working on rocky or uneven terrain simpler.

Standard Features Include:

• 4WD
• HST Transmission or 12×12 Transmission
• Twin Pedal (HST version)
• High Ground Clearance
• Power Steering
• Hydraulic Remotes (STD)

Engine & Transmission

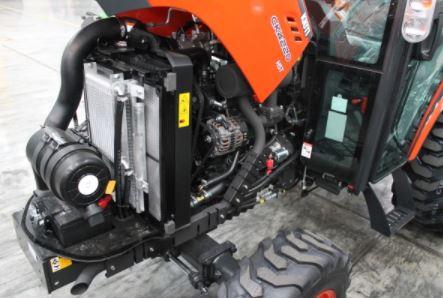

Innovative eco-friendly Daedong engine technology for high fuel efficiency and being environmentally friendly with its low levels of smoke, noise and vibration.

Specifications

ENGINEBRAKES
Daedong 3B183LWM-EIndependent Oil Immersed Disc Brakes
Liquid Cooled 3 Cylinder DieselCast Iron Transmission and Axle Housing
1826cc Displacement
42hp @ 2800 RPM (max)OPERATOR ENVIRONMENT
34 Litre Fuel Tank CapacityFront Work Lights with Indicators/Brake Lights
 Step Through Platform
TRANSMISSIONUnder Bonnet Muffler
12×12 Synchro Shuttle or 3 Range Hydrostatic DriveComfort Seat
Cruise Control HST ModelsDeluxe A/C Cabin
4 Wheel Drive
Rear Differential LockTRAVEL SPEEDS
 Speed Range 1.52-23.56 km/h (Manual)
HYDRAULICS & LINKAGEInfinite Speeds from 0-25 km/h F/R (HST)
Manual Linkage Control
44.4 l/min Total FlowDIMENSIONS
Category 1 Three Point LinkageOverall Length  3070 mm
Draw BarOverall Width   1400 mm
4 Hydraulic Remotes (2 Rear, 2 Front w/Joystick)Overall Height  2650 mm
740kg Max Rear Lift Capacity 600mm Behind Lift Wheelbase        1670 mm
 Ground Clearance    340 mm
TYRES
Industrial  Front  25/8 5×14
 Rear 15/19.5
