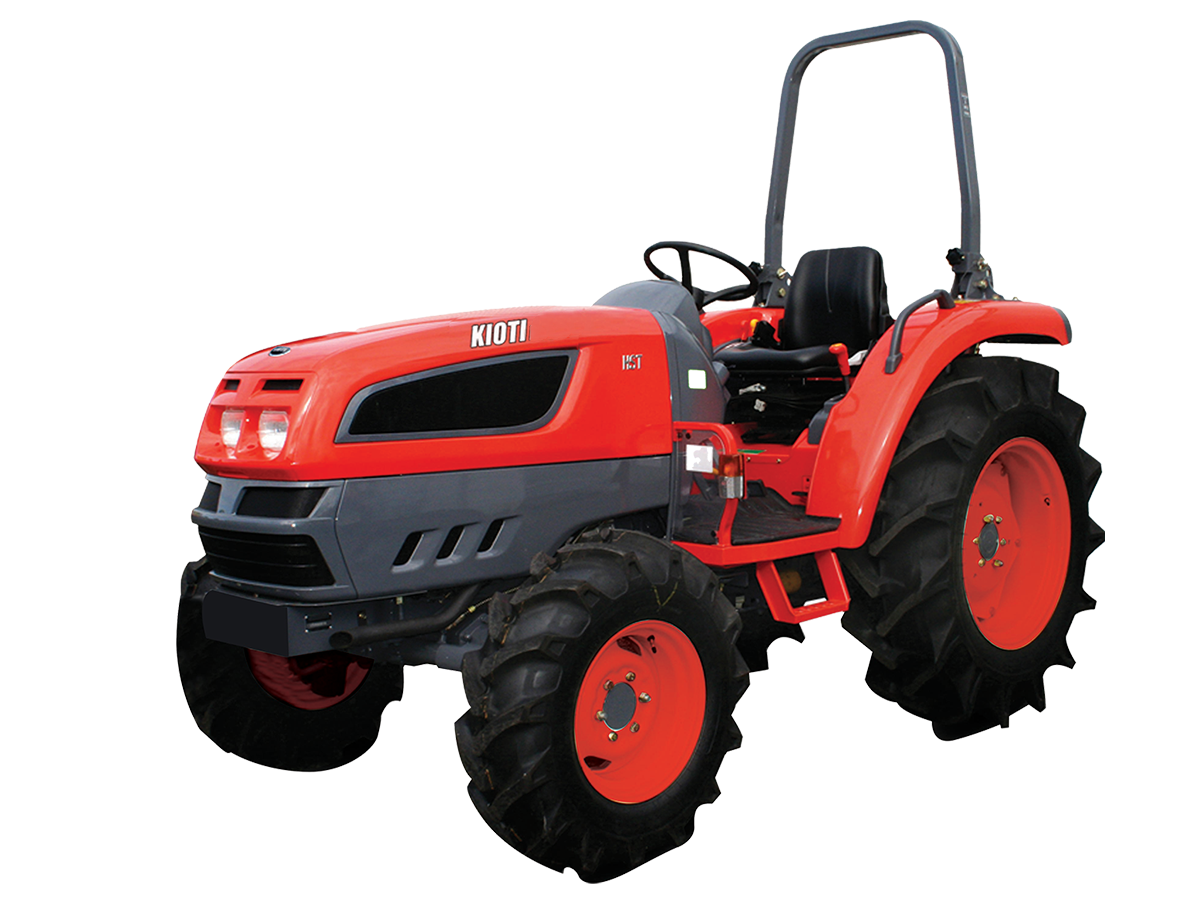

EX Series – 53-58HP

The measure that makes a tractor a true asset is the boost it gives to your productivity. It has to deliver enough power and versatility for a wide range of applications, day in, day out, season after season. This is where Kioti’s EX Series outperforms the competition and offers unbeatable value.

With two engine configurations, 53hp and turbo-aspirated 58hp, many features give these tractors the edge over the competition, including the powerful hydraulic system flow, 12 x 12 three-range smooth synchro shuttle transmission, 2 sets standard rear remotes, a generous 3pl lift capacity of 1131kg, standard loader with 4-in-one bucket and standard three-speed auto PTO.

The flat platform operator area has a no-slip mat, standard foot-activated tilt steering column and fully adjustable deluxe suspension seat for all-day comfort. High ground speed, push button 4WD, and power steering give you confidence, traction and excellent manoeuvrability in changing ground conditions.

  • Powerful 53hp / 58hp engine
  • Synchro shuttle transmission
  • 12 x 12 speed transmission
  • 62.4 LPM hydraulic pump flow
  • 1,131kg 3PL capacity @ 610mm
  • 2 x sets rear remote outlets
  • Auto PTO
  • 540 – 750 – 1000 PTO speeds
  • Flat working platform
  • Tilt steering wheel
  • Deluxe suspension seat

Specifications

EX5310 | EX5810
ENGINEBRAKES
EX5310 4B243DM-C1 | 53hp @2600 rpmWet Disc Type
EX5810 4B243DTM-C | 58hp @2600 rpm
2435cc DisplacementOPERATOR ENVIRONMENT
45 Litre Fuel Tank CapacityFront Work Lights with Indicators/Brake Lights
 Step Through Platform
 Under Bonnet Muffler
TRANSMISSIONComfort Seat with Seat Belt
12×12 Synchro ShuttleFoldable ROPS
Dry Single Clutch
Rear Differential LockTRAVEL SPEEDS
4 Wheel DriveSpeed Range 1.5-27.9 km/h

HYDRAULICS & LINKAGEDIMMENSIONS
Tandem Gear Hydraulic PumpOverall Length inc 3PL                3317mm
Manual Linkage ControlOverall Height inc ROPS             2550mm
62.4 I/min Total FlowOverall Width min tread             1675mm
Category 1 Three Point LinkageWheelbase                                 1919mm
1,131 kg Max Rear Lift Capacity 610mm Behind LiftMin Ground Clearance                  405mm
Power SteeringWeight                                        1790kgs
 2x Rear Remotes
POWER TAKE OFFTYRES
Hydraulic Independent 540 – 750 – 1000 rpm PTOEX5310
 Front Ag 8.6-16
 Rear Ag 13.6-26
 EX5810
 Front Ag 9.5-16
 Rear Ag 13.6-26

*This information is sourced from overseas therefore it might not apply locally. Please contact us to confirm specifications and other information.
