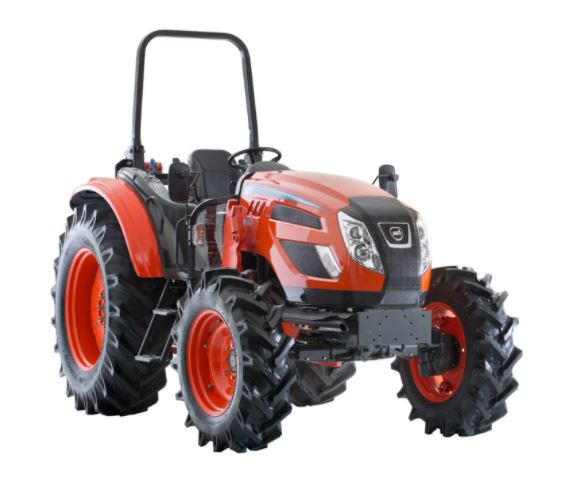

Kioti Daedong PX9520 ROPS

The Kioti Daedong PX tractor with a weight of 4 tonne is designed for serious farming and the ideal tractor for front end loader work.

With a large 120 litre fuel tank and a fuel efficient engine, the PX is able to work a long time between fuel breaks. Equipped with hydrostatic power steering, the PX provides smooth responsive steering that requires minimal operator effort and is ideal for loader work.

 Standard Features:

  • 95hp Diesel Engine
  • Power Forward / Reverse Shuttle
  • 16 x 16 Transmission
  • 4WD with Diff Lock
  • Power Steering
  • Auto Hydraulic Independent PTO

Specifications

ENGINEBRAKES & DRIVE TRAIN
Perkins 1104C-44TTT Wet Disk
Liquid Cooled 4 Cylinder Diesel
4399cc DisplacementOPTIONAL LUXURY CABIN
95hpHigh Quality Fully Adjustable Seat
120 Litre Fuel Tank Capacitywith Arm Rests and Backrest
 Adjustable Steering Wheel and Instruments
TRANSMISSIONFlat Operator Deck
Synchro Mesh
Synchro Forward and Reverse Shuttle
16F X 16RDeluxe Cabin with A/C and Heating
Differential LockCD Radio
4 Wheel DriveFront and Rear Wipers
 Internal/External Air Exchanger Filters
HYDRAULICS & LINKAGERefrigerator/Heating Cabinet
Implement Pump 48.4 l/pm
Powering Steering Pump 30.8l/pmROPS Frame
Total Hydraulic Flow 79.2 l/pmHigh Quality Fully Adjustable Seat
Category 2 Three Point Linkagewith Arm Rests and Backrest
Hook Type 3PLAdjustable Steering Wheel and Instruments
2400kgs Maximum Rear Lift Capacity
Power SteeringDIMENSIONS
Clevis Type Rear Draw BarOverall Width Minimum Tread 2000mm
 Overall Length incl. 3PL 4120mm
FRONT AXLEOverall Height  2305mm
Independent Wheelbase 2305mm
540 / 1000 rpmGround Clearance 475mm
Auto PTOWeight / AG 3500kgs

TYRESTRAVEL SPEEDS
AG Tyres – Front 12.4 – 24 8PR /  Forward 0.82 – 38.36 kp/h
Rear 18.4 – 34.8PRReverse 0.80 – 37.33 kp/h

OPTIONS
KL901 Loader with 4in1 Bucket
Rear Counter Balance Weight Box 1000kg
